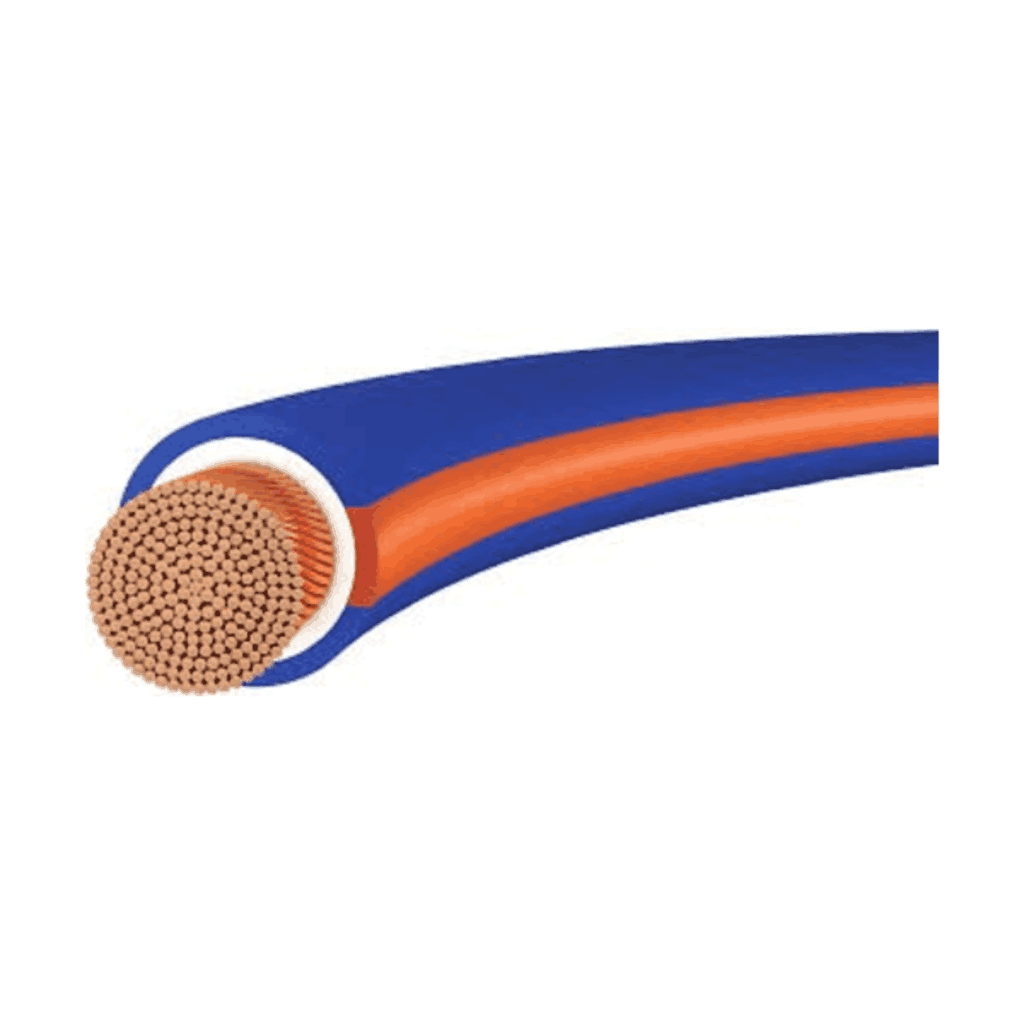

Standard 90 Meter Single Core PVC Insulated 1100 V Fleaxible Cable 4.0 Sq mm
Standard 90 Meter Single Core PVC Insulated 1100 V Fleaxible Cable 4.0 Sq mm 1981749821529
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
- Specification
- Description
|
Brand |
Standard |
|
Product Type |
Flexible Cable |
|
Code |
WSFFFN…A14X0 |
|
Length |
90 Meter |
|
Conductor Material |
Copper |
|
Nominal Cross Sectional area of conductor (Sq. mm) |
4.0 |
|
Number/Nom. Dia of cond. Strands (mm) |
56/0.3 |
|
Thickness of Insulation (mm) |
0.8 |
|
Approx. Overall Diameter (mm) |
4.1 |
|
Max. Conductor Resistance per KM at 20º C (ohms) |
4.95 |
|
Colour |
Blue |
|
Voltage |
1100 V |
|
Grade |
IS: 694 |
-
Single Core PVC Insulated Copper Conductor (Unsheathed), Flexible Industrial Cables,1100 Voltage Grade
-
Conductor : Plain annealed copper conductor as per IS:8130
-
Insulation : Primary - Natural PVC with HTR FR property
-
Secondary - Skin color coated PVC with HTR FR property
Product Description
-
Single Core PVC Insulated Copper Conductor (Unsheathed), Flexible Industrial Cables,1100 Voltage Grade
-
Conductor : Plain annealed copper conductor as per IS:8130
-
Insulation : Primary - Natural PVC with HTR FR property
-
Secondary - Skin color coated PVC with HTR FR property
Product Specification
|
Brand |
Standard |
|
Product Type |
Flexible Cable |
|
Code |
WSFFFN…A14X0 |
|
Length |
90 Meter |
|
Conductor Material |
Copper |
|
Nominal Cross Sectional area of conductor (Sq. mm) |
4.0 |
|
Number/Nom. Dia of cond. Strands (mm) |
56/0.3 |
|
Thickness of Insulation (mm) |
0.8 |
|
Approx. Overall Diameter (mm) |
4.1 |
|
Max. Conductor Resistance per KM at 20º C (ohms) |
4.95 |
|
Colour |
Blue |
|
Voltage |
1100 V |
|
Grade |
IS: 694 |
