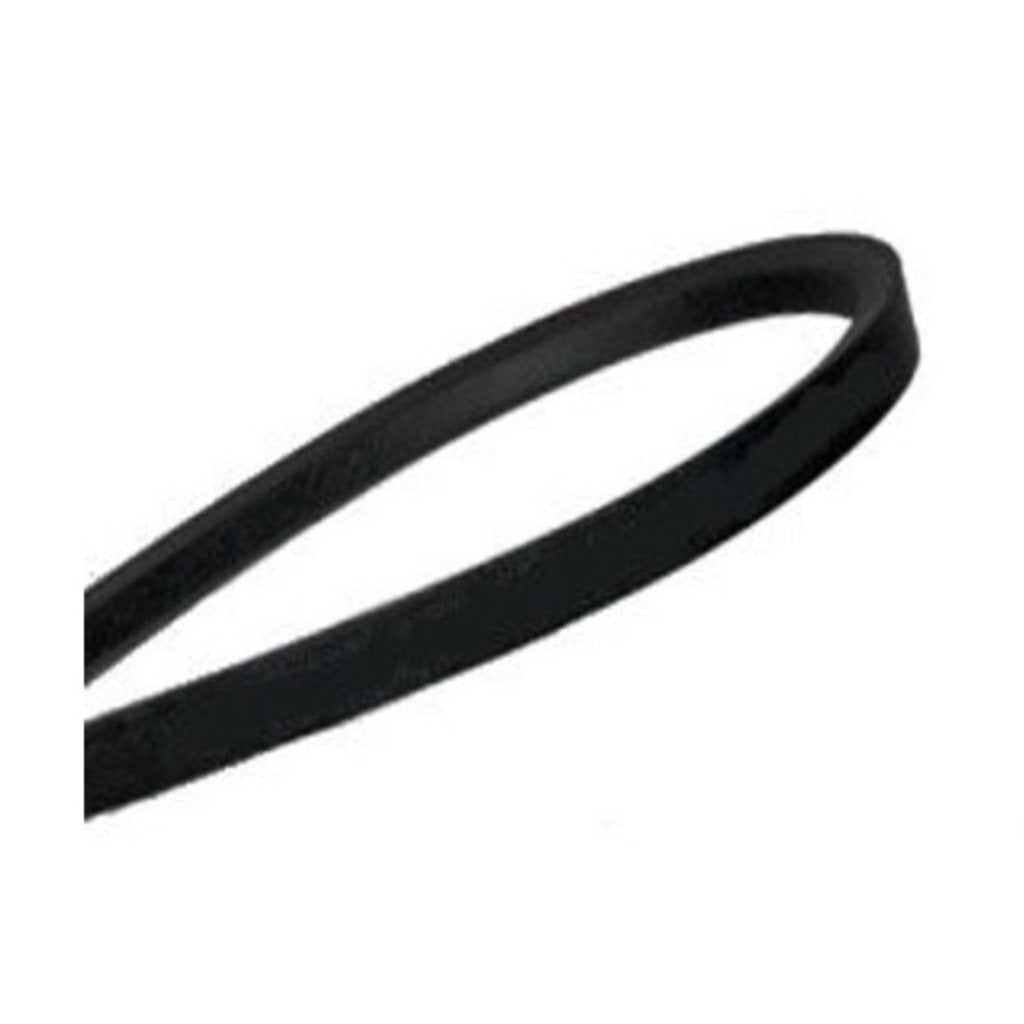

PIX Wrap Belt D Section 32 x 19 mm (Classical Section)
PIX Wrap Belt D Section 32 x 19 mm (Classical Section) 4786291572825
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
D 45, D 90, D 95, D 105, D 110, D 112, D 114, D 115, D 116, D 118, D 120, D 122, D 124, D 126, D 128, D 130, D 132, D 134, D 136, D 140, D 144, D 148, D 150, D 158, D 160, D 162, D 165, D 168, D 170, D 173, D 175, D 180, D 185, D 190 |
|
Section |
D Section |
|
Angle Degree |
40 |
|
Top Width |
32 mm |
|
Thickness |
19 mm |
|
Min Pulley Dia. (mm) |
355 dp |
|
Mfg. Range |
44.5 Inch to 920 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
D 45, D 90, D 95, D 105, D 110, D 112, D 114, D 115, D 116, D 118, D 120, D 122, D 124, D 126, D 128, D 130, D 132, D 134, D 136, D 140, D 144, D 148, D 150, D 158, D 160, D 162, D 165, D 168, D 170, D 173, D 175, D 180, D 185, D 190 |
|
Section |
D Section |
|
Angle Degree |
40 |
|
Top Width |
32 mm |
|
Thickness |
19 mm |
|
Min Pulley Dia. (mm) |
355 dp |
|
Mfg. Range |
44.5 Inch to 920 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
