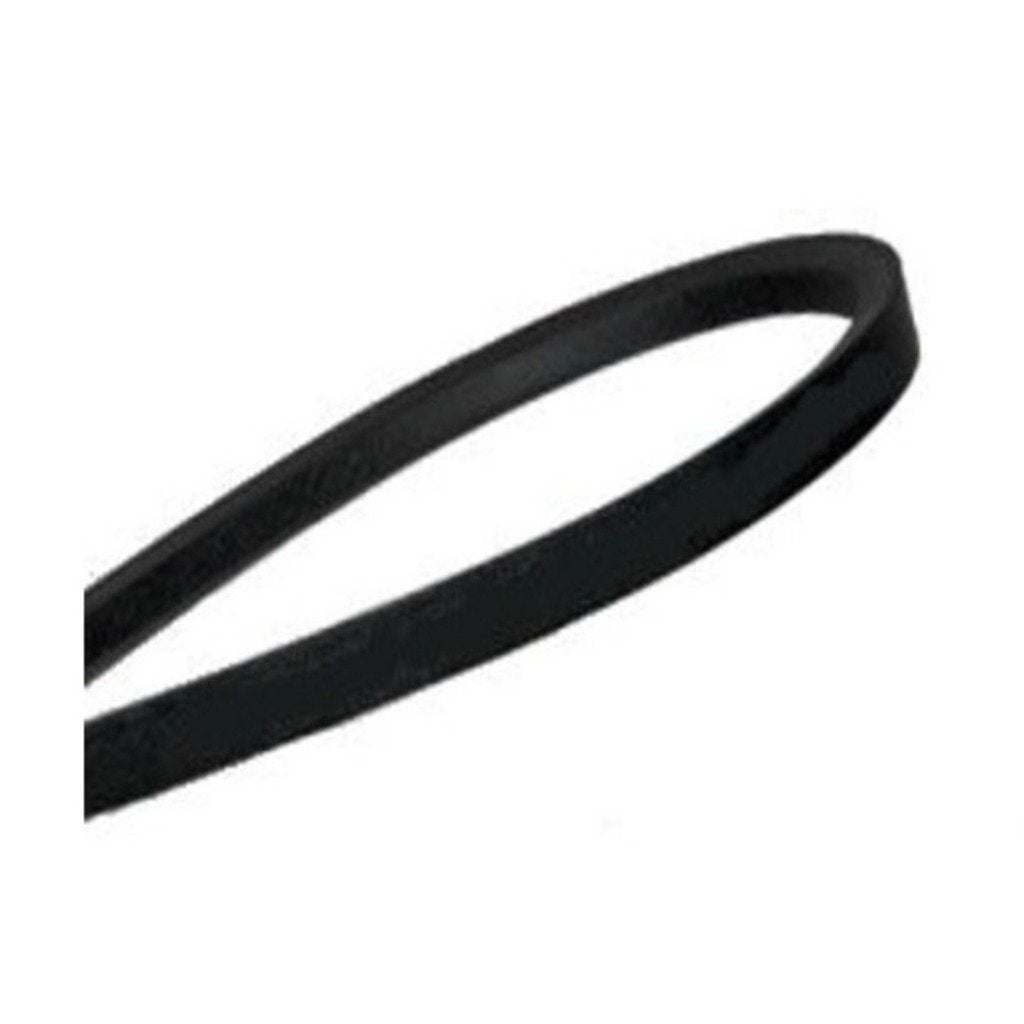

PIX Wrap Belt C Section 22 x 14 mm (Classical Section)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
C 101, C 102, C 103, C 104, C 105, C 106, C 107, C 108, C 109, C 110, C 111, C 112, C 113, C 114, C 115, C 116, C 117, C 118, C 119, C 120, C 121, C 122, C 123, C 124, C 125, C 126, C 127, C 128, C 129, C 130, C 131, C 132, C 133, C 134, C 135, C 136, C 137, C 138, C 139, C 140, C 141, C 142, C 143, C 144, C 145, C 146, C 147, C 148, C 149, C 150, C 152, C 153, C 154, C 155, C 156, C 157, C 158, C 160, C 162, C 163, C 164, C 165, C 166, C 167, C 168, C 169, C 170, C 172, C 173, C 174, C 175, C 176, C 177, C 178, C 180 |
|
Section |
C Section |
|
Angle Degree |
40 |
|
Top Width |
22 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
180 dp |
|
Mfg. Range |
31 Inch to 900 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
C 101, C 102, C 103, C 104, C 105, C 106, C 107, C 108, C 109, C 110, C 111, C 112, C 113, C 114, C 115, C 116, C 117, C 118, C 119, C 120, C 121, C 122, C 123, C 124, C 125, C 126, C 127, C 128, C 129, C 130, C 131, C 132, C 133, C 134, C 135, C 136, C 137, C 138, C 139, C 140, C 141, C 142, C 143, C 144, C 145, C 146, C 147, C 148, C 149, C 150, C 152, C 153, C 154, C 155, C 156, C 157, C 158, C 160, C 162, C 163, C 164, C 165, C 166, C 167, C 168, C 169, C 170, C 172, C 173, C 174, C 175, C 176, C 177, C 178, C 180 |
|
Section |
C Section |
|
Angle Degree |
40 |
|
Top Width |
22 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
180 dp |
|
Mfg. Range |
31 Inch to 900 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
