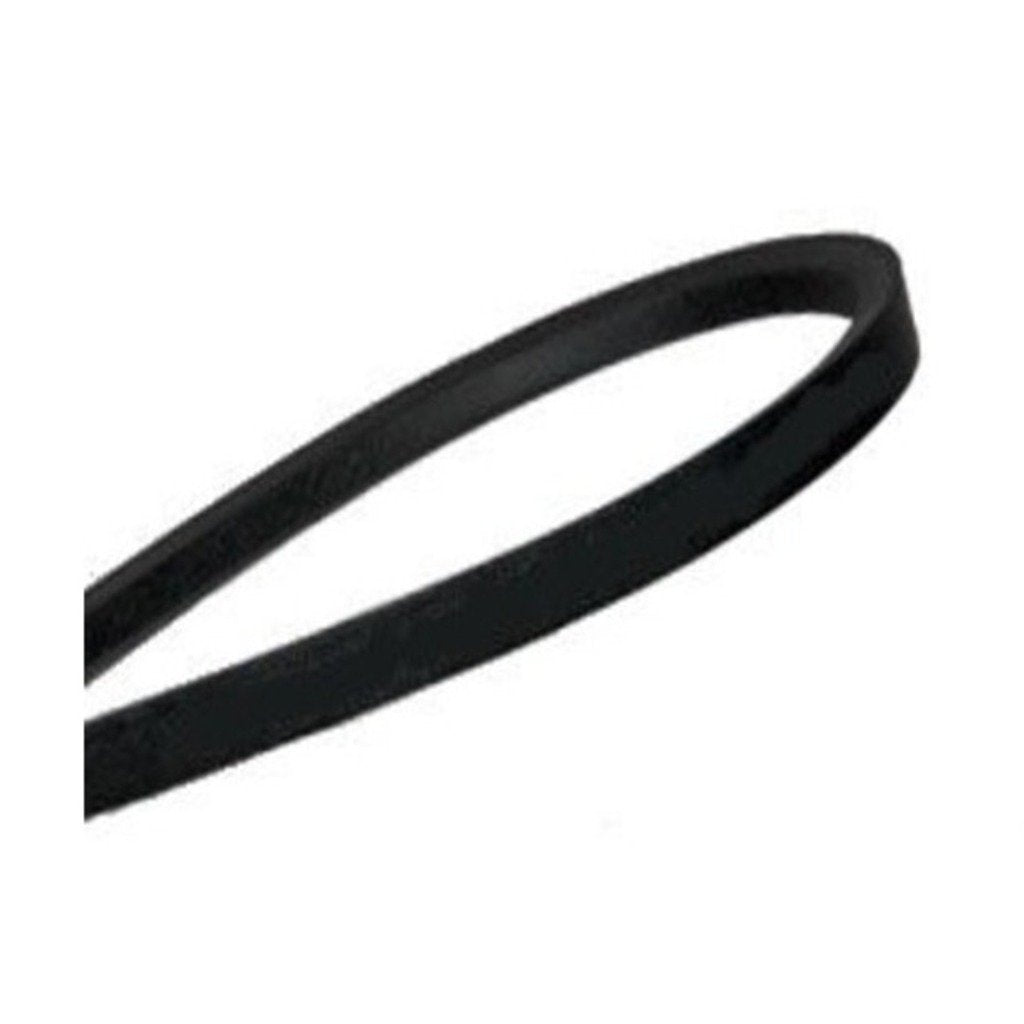

PIX Wrap Belt C Section 22 x 14 mm (Classical Section)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
C 31, C 33, C 35, C 36, C 37, C 38, C 39, C 40, C 41, C 42, C 43, C 44, C 45, C 46, C 47, C 48, C 49, C 50, C 51, C 52, C 53, C 54, C 55, C 56, C 57, C 58, C 59, C 60, C 61, C 62, C 63, C 64, C 65, C 66, C 67, C 68, C 69, C 70, C 71, C 72, C 73, C 74, C 75, C 76, C 77, C 78, C 79, C 80, C 81, C 82, C 83, C 84, C 85, C 86, C 87, C 88, C 89, C 90, C 91, C 92, C 93, C 94, C 95, C 96, C 97, C 98, C 99, C 100 |
|
Section |
C Section |
|
Angle Degree |
40 |
|
Top Width |
22 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
180 dp |
|
Mfg. Range |
31 Inch to 900 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
C 31, C 33, C 35, C 36, C 37, C 38, C 39, C 40, C 41, C 42, C 43, C 44, C 45, C 46, C 47, C 48, C 49, C 50, C 51, C 52, C 53, C 54, C 55, C 56, C 57, C 58, C 59, C 60, C 61, C 62, C 63, C 64, C 65, C 66, C 67, C 68, C 69, C 70, C 71, C 72, C 73, C 74, C 75, C 76, C 77, C 78, C 79, C 80, C 81, C 82, C 83, C 84, C 85, C 86, C 87, C 88, C 89, C 90, C 91, C 92, C 93, C 94, C 95, C 96, C 97, C 98, C 99, C 100 |
|
Section |
C Section |
|
Angle Degree |
40 |
|
Top Width |
22 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
180 dp |
|
Mfg. Range |
31 Inch to 900 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
