SKU # 1000037449

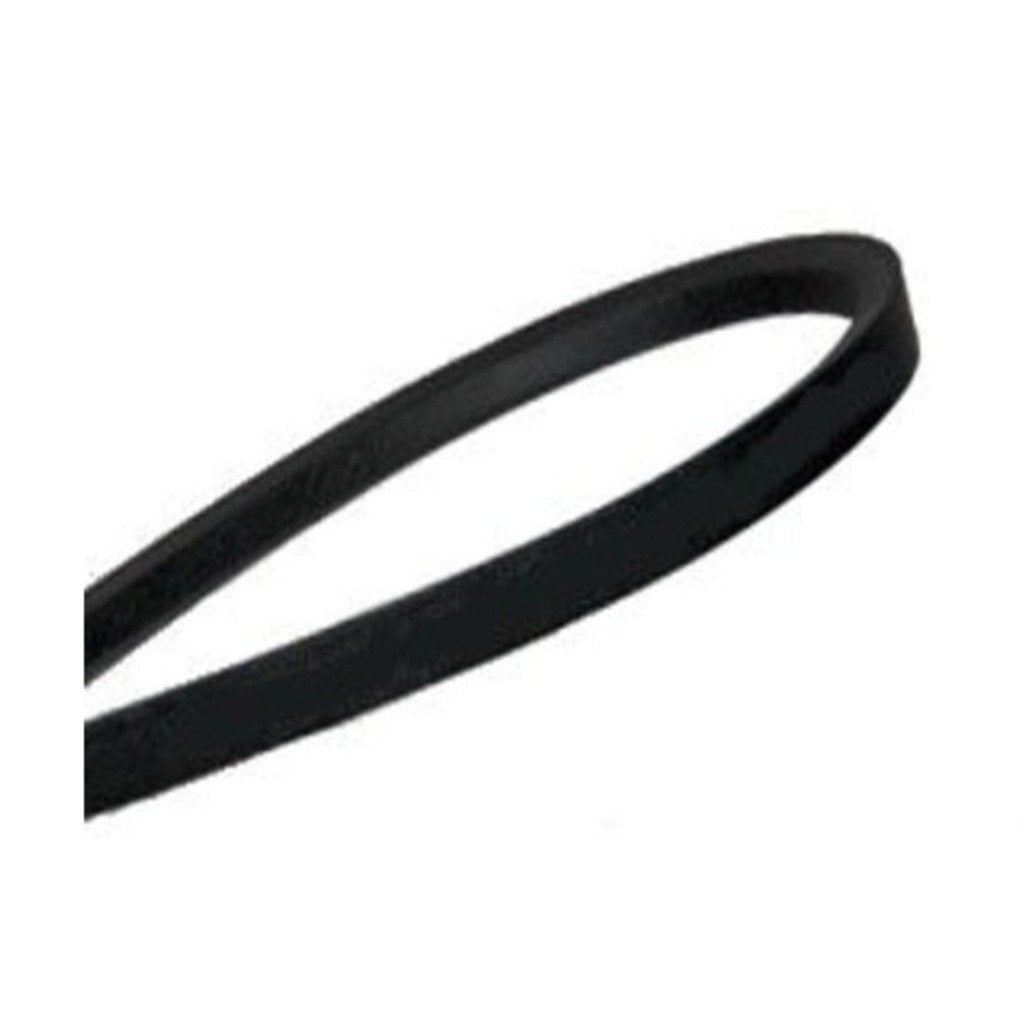

PIX Wrap Belt B Section 17 x 11 mm (Classical Section)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
B 81, B 82, B 83, B 84, B 85, B 86, B 87, B 88, B 89, B 90, B 91, B 92, B 93, B 94, B 95, B 96, B 97, B 98, B 99, B 100, B 101, B 102, B 103, B 104, B 105, B 106, B 107, B 108, B 109, B 110, B 111, B 112, B 113, B 114, B 115, B 116, B 117, B 118, B 119, B 120, B 121, B 122, B 124, B 125, B 126, B 127, B 128, B 129, B 130, B 131, B 132, B 133, B 134, B 135, B 136, B 137, B 138, B 140, B 142, B 143, B 144, B 145, B 146, B 147, B 148, B 150 |
|
Section |
B Section |
|
Angle Degree |
40 |
|
Top Width |
17 mm |
|
Thickness |
11 mm |
|
Min Pulley Dia. (mm) |
112 dp |
|
Mfg. Range |
16 Inch to 900 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
B 81, B 82, B 83, B 84, B 85, B 86, B 87, B 88, B 89, B 90, B 91, B 92, B 93, B 94, B 95, B 96, B 97, B 98, B 99, B 100, B 101, B 102, B 103, B 104, B 105, B 106, B 107, B 108, B 109, B 110, B 111, B 112, B 113, B 114, B 115, B 116, B 117, B 118, B 119, B 120, B 121, B 122, B 124, B 125, B 126, B 127, B 128, B 129, B 130, B 131, B 132, B 133, B 134, B 135, B 136, B 137, B 138, B 140, B 142, B 143, B 144, B 145, B 146, B 147, B 148, B 150 |
|
Section |
B Section |
|
Angle Degree |
40 |
|
Top Width |
17 mm |
|
Thickness |
11 mm |
|
Min Pulley Dia. (mm) |
112 dp |
|
Mfg. Range |
16 Inch to 900 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
