SKU # 1000037324

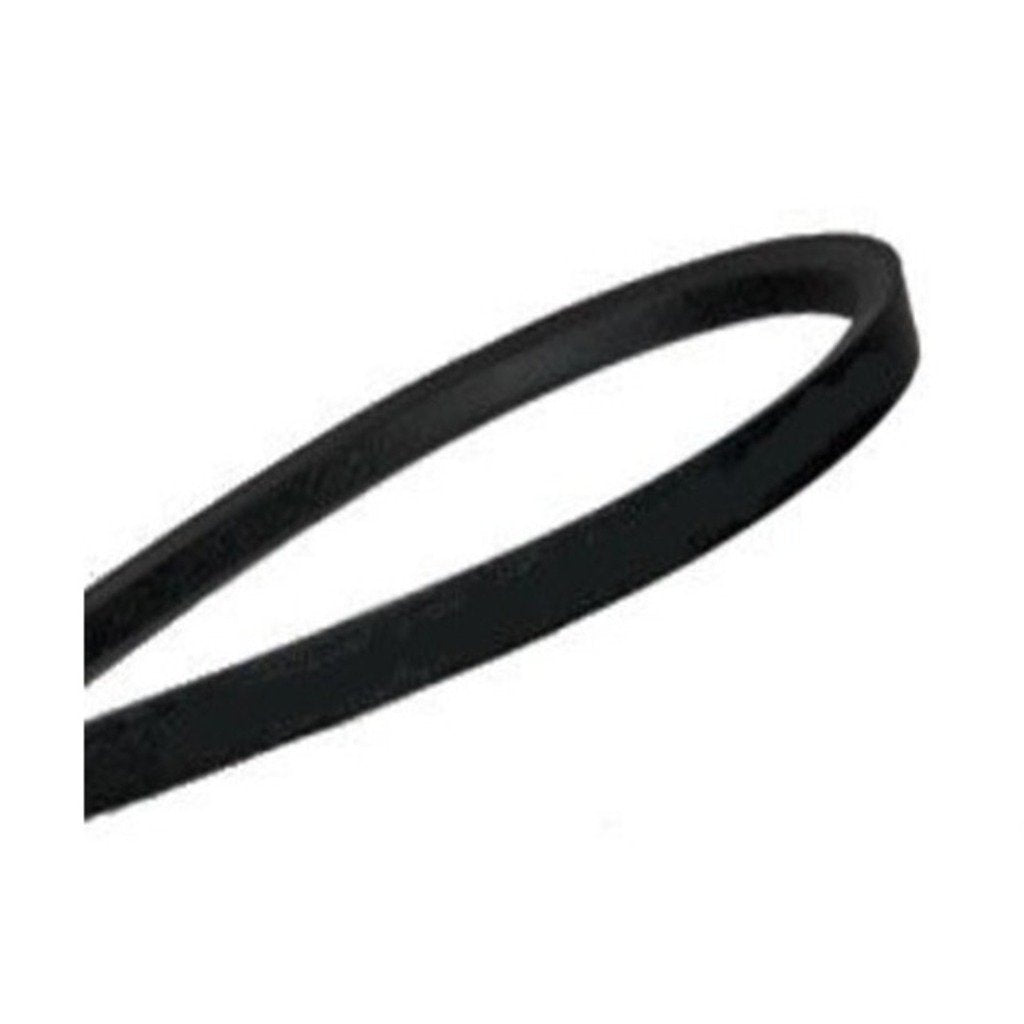

PIX Wrap Belt A Section 13 x 8 mm (Classical Section)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
A 91, A 92, A 93, A 94, A 95, A 96, A 97, A 98, A 99, A 100, A 101, A 102, A 103, A 104, A 105, A 106, A 107, A 108, A 109, A 110, A 112, A 114, A 115, A 116, A 118, A 120, A 122, A 124, A 125, A 126, A 128, A 130, A 132, A 134, A 135, A 136, A 138, A 140, A 142, A 144, A 145, A 146, A 148, A 150, A 154, A 156, A 158, A 160, A 162, A 164, A 166, A 168, A 170, A 172, A 174, A 178, A 180, A 190, A 195, A 200, A 205, A 210, A 357 |
|
Section |
A Section |
|
Angle Degree |
40 |
|
Top Width |
13 mm |
|
Thickness |
8 mm |
|
Min Pulley Dia. (mm) |
71 dp |
|
Mfg. Range |
13 Inch to 357 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
A 91, A 92, A 93, A 94, A 95, A 96, A 97, A 98, A 99, A 100, A 101, A 102, A 103, A 104, A 105, A 106, A 107, A 108, A 109, A 110, A 112, A 114, A 115, A 116, A 118, A 120, A 122, A 124, A 125, A 126, A 128, A 130, A 132, A 134, A 135, A 136, A 138, A 140, A 142, A 144, A 145, A 146, A 148, A 150, A 154, A 156, A 158, A 160, A 162, A 164, A 166, A 168, A 170, A 172, A 174, A 178, A 180, A 190, A 195, A 200, A 205, A 210, A 357 |
|
Section |
A Section |
|
Angle Degree |
40 |
|
Top Width |
13 mm |
|
Thickness |
8 mm |
|
Min Pulley Dia. (mm) |
71 dp |
|
Mfg. Range |
13 Inch to 357 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
