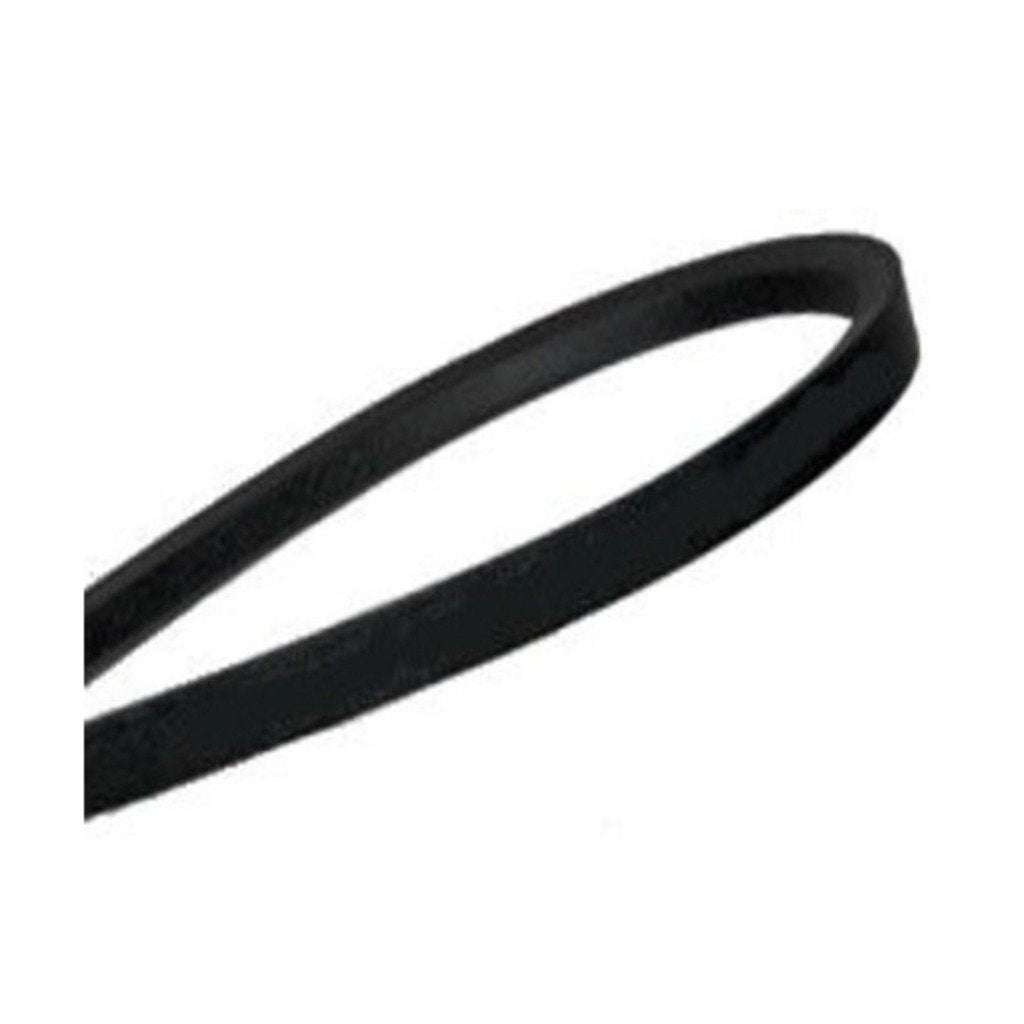

PIX Wrap Belt A Section 13 x 8 mm (Classical Section)
PIX Wrap Belt A Section 13 x 8 mm (Classical Section) 4786291966041
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
A 51, A 52, A 53, A 54, A 55, A 56, A 57, A 58, A 59, A 60, A 61, A 62, A 63, A 64, A 65, A 66, A 67, A 68, A 69, A 70, A 71, A 72, A 73, A 74, A 75, A 76, A 77, A 78, A 79, A 80, A 81, A 82, A 83, A 84, A 85, A 87, A 88, A 89, A 90 |
|
Section |
A Section |
|
Angle Degree |
40 |
|
Top Width |
13 mm |
|
Thickness |
8 mm |
|
Min Pulley Dia. (mm) |
71 dp |
|
Mfg. Range |
13 Inch to 357 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Top Width To Height Ratio 1.6:1
-
Maximum Recommended Belt Speed Is 30 M/S
-
Permissible Flex Rate F=80 Per Second
-
Special CR Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)
-
Temperature Range: -18°C to +80°C
-
They Are Primarily Used In Industrial Drives
-
Classical Belts Are Recommended In Special Applications Such As V-Flat Drives
-
These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
A 51, A 52, A 53, A 54, A 55, A 56, A 57, A 58, A 59, A 60, A 61, A 62, A 63, A 64, A 65, A 66, A 67, A 68, A 69, A 70, A 71, A 72, A 73, A 74, A 75, A 76, A 77, A 78, A 79, A 80, A 81, A 82, A 83, A 84, A 85, A 87, A 88, A 89, A 90 |
|
Section |
A Section |
|
Angle Degree |
40 |
|
Top Width |
13 mm |
|
Thickness |
8 mm |
|
Min Pulley Dia. (mm) |
71 dp |
|
Mfg. Range |
13 Inch to 357 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
