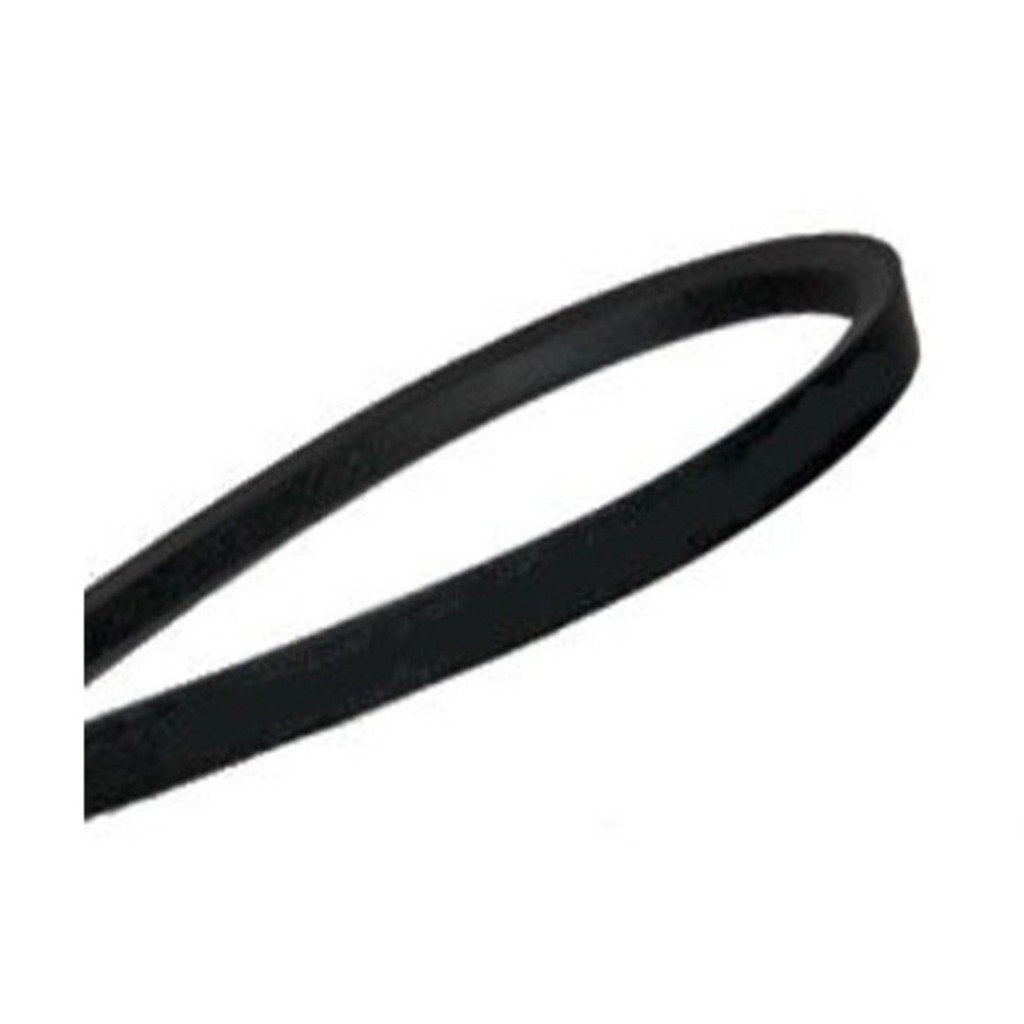

PIX Wrap Belt A Section 13 x 8 mm (Classical Section)

PIX Wrap Belt A Section 13 x 8 mm (Classical Section)

Visit the Redmi Store

₹ 0.00


Quantity



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
  • Specification
  • Description

Brand

PIX

Product Type

Wrap Belt

Size

A 13, A 14, A 15, A 16, A 17, A 18, A 19, A 20, A 21, A 22, A 23, A 24, A 25, A 26, A 27, A 28, A 29, A 30, A 31, A 32, A 33, A 34, A 35, A 36, A 37, A 38, A 39, A 40, A 41, A 42, A 43, A 44, A 45, A 46, A 47, A 48, A 49, A 50

Section

A Section

Angle Degree

40

Top Width

13 mm

Thickness

8 mm

Min Pulley Dia. (mm)

71 dp

Mfg. Range

13 Inch to 357 Inch

Standard

IS 2494, BS 3790, ISO 4184
PIX Wrap Belt A Section 13 x 8 mm (Classical Section)

  • Top Width To Height Ratio 1.6:1

  • Maximum Recommended Belt Speed Is 30 M/S

  • Permissible Flex Rate F=80 Per Second

  • Special CR Treated Outer Jacketing Fabric For Higher Durability

  • Anti-Static, Oil & Heat Resistant

  • Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)

  • Temperature Range: -18°C to +80°C

  • They Are Primarily Used In Industrial Drives

  • Classical Belts Are Recommended In Special Applications Such As V-Flat Drives

  • These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness

  • Application

  • Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc

Product Description

  • Top Width To Height Ratio 1.6:1

  • Maximum Recommended Belt Speed Is 30 M/S

  • Permissible Flex Rate F=80 Per Second

  • Special CR Treated Outer Jacketing Fabric For Higher Durability

  • Anti-Static, Oil & Heat Resistant

  • Maximum Belt Linear Speed (Classical Section: Up to 30 m/Sec, Wedge section: up to 42 m/Sec, Narrow Section: Up To 45 m/Sec)

  • Temperature Range: -18°C to +80°C

  • They Are Primarily Used In Industrial Drives

  • Classical Belts Are Recommended In Special Applications Such As V-Flat Drives

  • These Belts Are Advantageous Where Reverse Idlers Have To Be Used, Because Of The Smaller Thickness

  • Application

  • Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc

Product Specification

Brand

PIX

Product Type

Wrap Belt

Size

A 13, A 14, A 15, A 16, A 17, A 18, A 19, A 20, A 21, A 22, A 23, A 24, A 25, A 26, A 27, A 28, A 29, A 30, A 31, A 32, A 33, A 34, A 35, A 36, A 37, A 38, A 39, A 40, A 41, A 42, A 43, A 44, A 45, A 46, A 47, A 48, A 49, A 50

Section

A Section

Angle Degree

40

Top Width

13 mm

Thickness

8 mm

Min Pulley Dia. (mm)

71 dp

Mfg. Range

13 Inch to 357 Inch

Standard

IS 2494, BS 3790, ISO 4184
