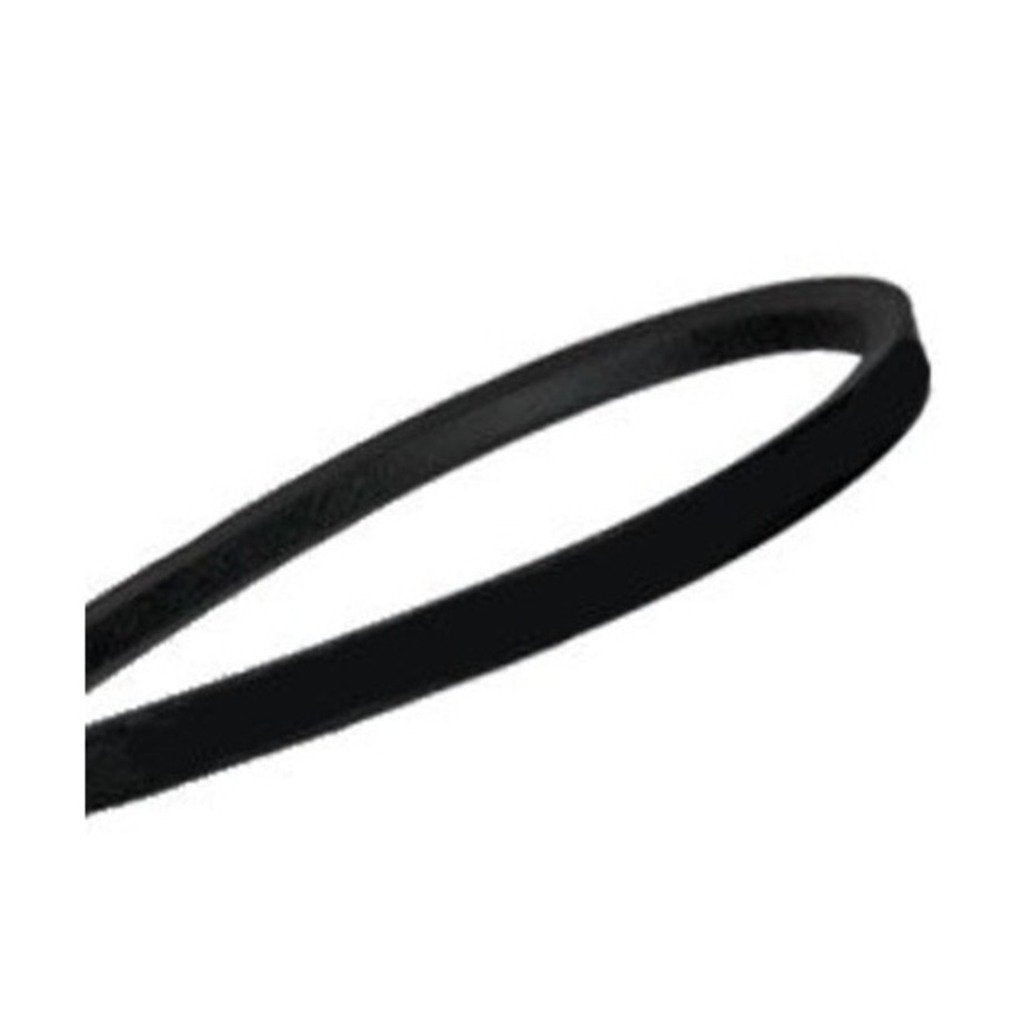

PIX Wrap Belt 5V Section 15.8 x 14 mm (Narrow Section)
PIX Wrap Belt 5V Section 15.8 x 14 mm (Narrow Section) 4786293735513
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
5V 470, 5V 600, 5V 670, 5V 710, 5V 750, 5V 800, 5V 850, 5V 900, 5V 950, 5V 980, 5V 1000, 5V 1060, 5V 1120, 5V 1180, 5V 1200, 5V 1250, 5V 1320, 5V 1400, 5V 1500, 5V 1550, 5V 1600, 5V 1760, 5V 1800, 5V 2000, 5V 2120, 5V 2240, 5V 2360, 5V 2500, 5V 3150, 5V 9200 |
|
Section |
5V Section |
|
Angle Degree |
40 |
|
Top Width |
15.8 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
140 dp |
|
Mfg. Range |
47 Inch To 920 Inch |
|
Standard |
RMA IP 22 |
-
Maximum Recommended Belt Speed Is 45 M/S*
-
Maximum Flex Rate Is F=100 Per Second
-
For Belt Speed More Than 45 M/Sec, Pulleys Must Be Dynamically Balanced
-
Special Cr Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge Section: Up To 42 M/Sec, Narrow Section: Up To 45 M/Sec)
-
Temperature Range: -18°C To +80°C
-
These Are The Standard Section Belts Used In Usa And Canada, Therefore They Are Primarily Used In The Machines Exported To Or From These Countries
-
8v Section Belts Are Used In Heavy Duty Applications, Example Stone Crushers
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Description
-
Maximum Recommended Belt Speed Is 45 M/S*
-
Maximum Flex Rate Is F=100 Per Second
-
For Belt Speed More Than 45 M/Sec, Pulleys Must Be Dynamically Balanced
-
Special Cr Treated Outer Jacketing Fabric For Higher Durability
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge Section: Up To 42 M/Sec, Narrow Section: Up To 45 M/Sec)
-
Temperature Range: -18°C To +80°C
-
These Are The Standard Section Belts Used In Usa And Canada, Therefore They Are Primarily Used In The Machines Exported To Or From These Countries
-
8v Section Belts Are Used In Heavy Duty Applications, Example Stone Crushers
-
Application
-
Industrial Drives, Generators, Blowers, Ball-Mills, Rolling Mills, Crushers, Compressors, Pumps, Wet Grinders, Household Appliances, Cement Industry, Steel Industry, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Wrap Belt |
|
Size |
5V 470, 5V 600, 5V 670, 5V 710, 5V 750, 5V 800, 5V 850, 5V 900, 5V 950, 5V 980, 5V 1000, 5V 1060, 5V 1120, 5V 1180, 5V 1200, 5V 1250, 5V 1320, 5V 1400, 5V 1500, 5V 1550, 5V 1600, 5V 1760, 5V 1800, 5V 2000, 5V 2120, 5V 2240, 5V 2360, 5V 2500, 5V 3150, 5V 9200 |
|
Section |
5V Section |
|
Angle Degree |
40 |
|
Top Width |
15.8 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
140 dp |
|
Mfg. Range |
47 Inch To 920 Inch |
|
Standard |
RMA IP 22 |
