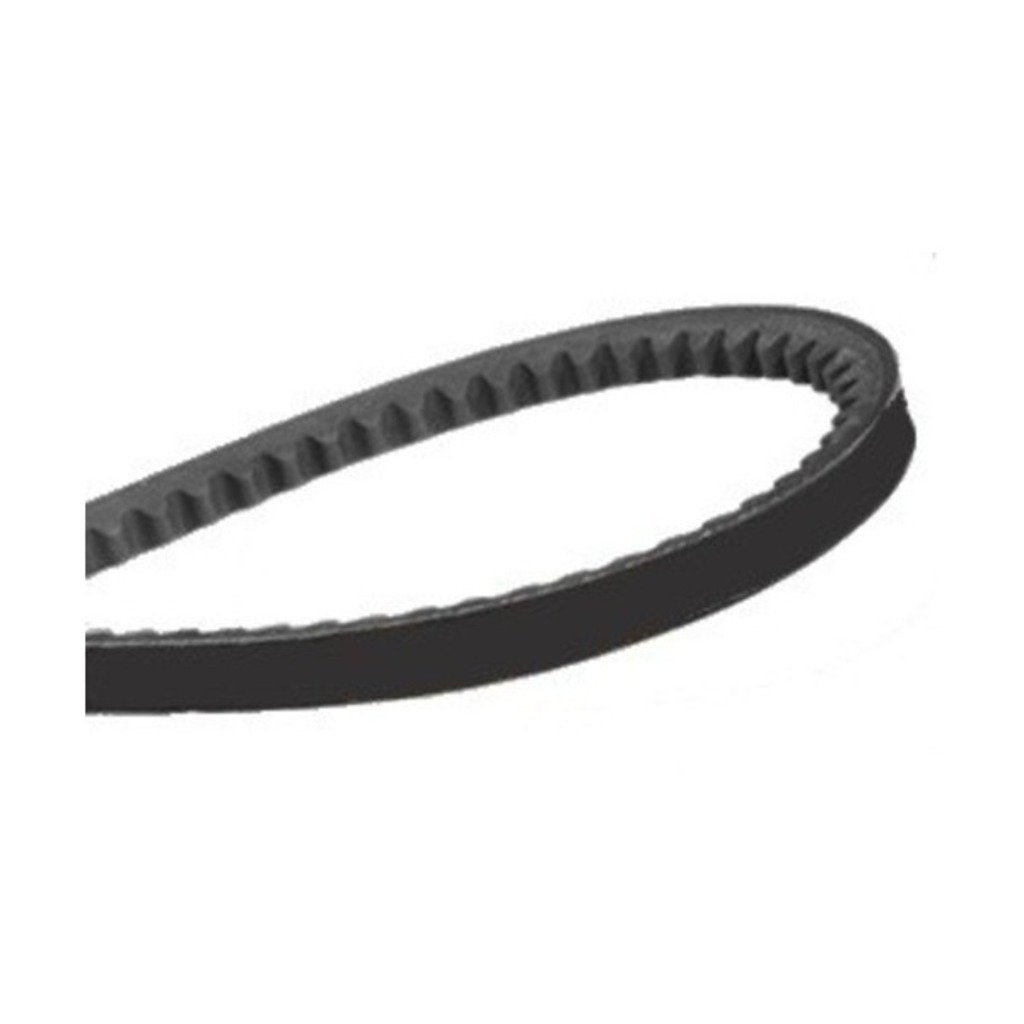

PIX Raw Edge Cogged Belt XPC Section 22 x 18 mm (Wedge Section)
PIX Raw Edge Cogged Belt XPC Section 22 x 18 mm (Wedge Section) 4786293243993
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
XPC 600, XPC 2120, XPC 2360, XPC 2500, XPC 2650, XPC 2800, XPC 3000, XPC 3100, XPC 3150, XPC 3200, XPC 3310, XPC 3350, XPC 3500, XPC 3550, XPC 3600, XPC 3750, XPC 4000, XPC 4150, XPC 4250, XPC 4300, XPC 4400, XPC 4500, XPC 4750, XPC 5000, XPC 6300 |
|
Section |
XPC Section |
|
Angle |
38 |
|
Top Width |
22 mm |
|
Thickness |
18 mm |
|
Min Pulley Dia. (mm) |
180 dp |
|
Mfg. Range |
600 mm To 6300 mm |
|
Standard |
BS 3790 |
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Description
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
XPC 600, XPC 2120, XPC 2360, XPC 2500, XPC 2650, XPC 2800, XPC 3000, XPC 3100, XPC 3150, XPC 3200, XPC 3310, XPC 3350, XPC 3500, XPC 3550, XPC 3600, XPC 3750, XPC 4000, XPC 4150, XPC 4250, XPC 4300, XPC 4400, XPC 4500, XPC 4750, XPC 5000, XPC 6300 |
|
Section |
XPC Section |
|
Angle |
38 |
|
Top Width |
22 mm |
|
Thickness |
18 mm |
|
Min Pulley Dia. (mm) |
180 dp |
|
Mfg. Range |
600 mm To 6300 mm |
|
Standard |
BS 3790 |
