SKU # 1000040060

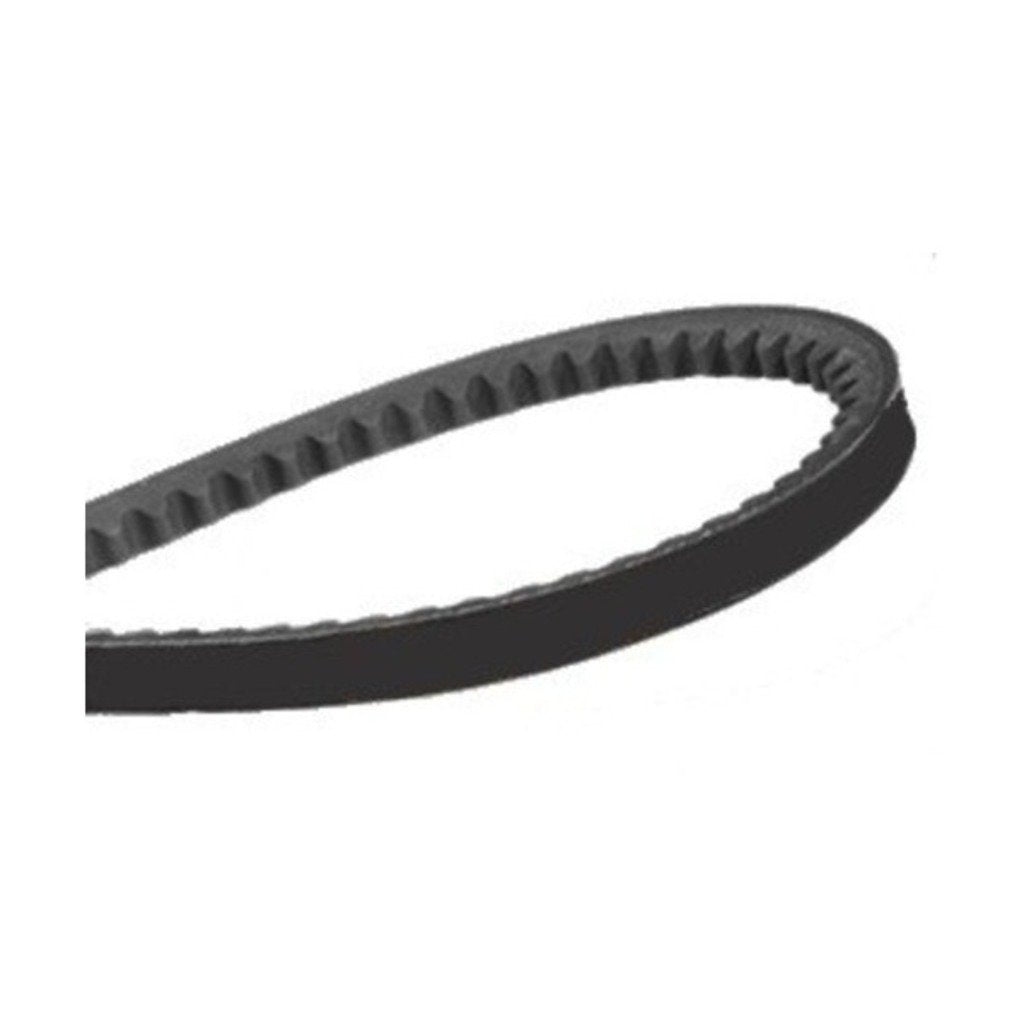

PIX Raw Edge Cogged Belt CX Section 22 x 14 mm (Classical Section)
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
CX 24, CX 37, CX 38, CX 42, CX 44, CX 45, CX 46, CX 47, CX 48, CX 49, CX 50, CX 51, CX 52, CX 53, CX 54, CX 55, CX 56, CX 57, CX 58, CX 60, CX 61, CX 62, CX 63, CX 64, CX 65, CX 67, CX 68, CX 69, CX 70, CX 71, CX 72, CX 73,CX 74, CX 75, CX 76, CX 78, CX 80, CX 81, CX 82, CX 84, CX 85, CX 86, CX 88, CX 94, CX 98, CX 100, CX 136, CX 150, CX 158, CX 169, CX 175, CX 180, CX 195, CX 198, CX 200 |
|
Section |
CX Section |
|
Angle |
36 |
|
Top Width |
22 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
140 dp |
|
Mfg. Range |
23.5 Inch To 200 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Description
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
CX 24, CX 37, CX 38, CX 42, CX 44, CX 45, CX 46, CX 47, CX 48, CX 49, CX 50, CX 51, CX 52, CX 53, CX 54, CX 55, CX 56, CX 57, CX 58, CX 60, CX 61, CX 62, CX 63, CX 64, CX 65, CX 67, CX 68, CX 69, CX 70, CX 71, CX 72, CX 73,CX 74, CX 75, CX 76, CX 78, CX 80, CX 81, CX 82, CX 84, CX 85, CX 86, CX 88, CX 94, CX 98, CX 100, CX 136, CX 150, CX 158, CX 169, CX 175, CX 180, CX 195, CX 198, CX 200 |
|
Section |
CX Section |
|
Angle |
36 |
|
Top Width |
22 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
140 dp |
|
Mfg. Range |
23.5 Inch To 200 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
