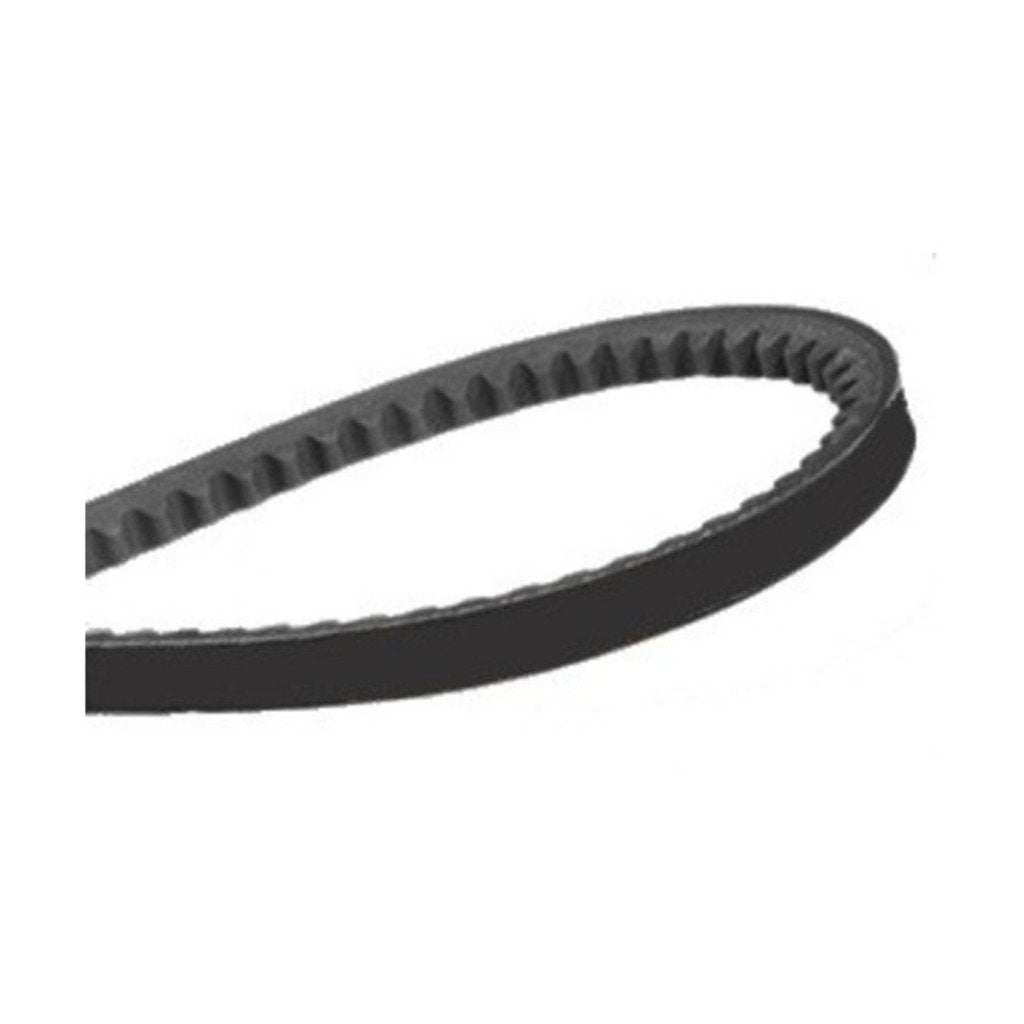

PIX Raw Edge Cogged Belt BX Section 17 x 11 mm (Classical Section)
PIX Raw Edge Cogged Belt BX Section 17 x 11 mm (Classical Section) 4786293407833
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
BX 64, BX 65, BX 66, BX 67, BX 68, BX 69, BX 70, BX 71, BX 72, BX 73, BX 74, BX 75, BX 76, BX 77, BX 78, BX 79, BX 80, BX 81, BX 82, BX 83, BX 84, BX 85, BX 86, BX 87, BX 88, BX 89, BX 90, BX 92, BX 93, BX 95, BX 96, BX 98, BX 100, BX 105, BX 112, BX 120, BX 133, BX 160, BX 170, BX 200 |
|
Section |
BX Section |
|
Angle |
36 |
|
Top Width |
17 mm |
|
Thickness |
11 mm |
|
Min Pulley Dia. (mm) |
90 dp |
|
Mfg. Range |
21.5 Inch To 200 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Description
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
BX 64, BX 65, BX 66, BX 67, BX 68, BX 69, BX 70, BX 71, BX 72, BX 73, BX 74, BX 75, BX 76, BX 77, BX 78, BX 79, BX 80, BX 81, BX 82, BX 83, BX 84, BX 85, BX 86, BX 87, BX 88, BX 89, BX 90, BX 92, BX 93, BX 95, BX 96, BX 98, BX 100, BX 105, BX 112, BX 120, BX 133, BX 160, BX 170, BX 200 |
|
Section |
BX Section |
|
Angle |
36 |
|
Top Width |
17 mm |
|
Thickness |
11 mm |
|
Min Pulley Dia. (mm) |
90 dp |
|
Mfg. Range |
21.5 Inch To 200 Inch |
|
Standard |
IS 2494, BS 3790, ISO 4184 |
