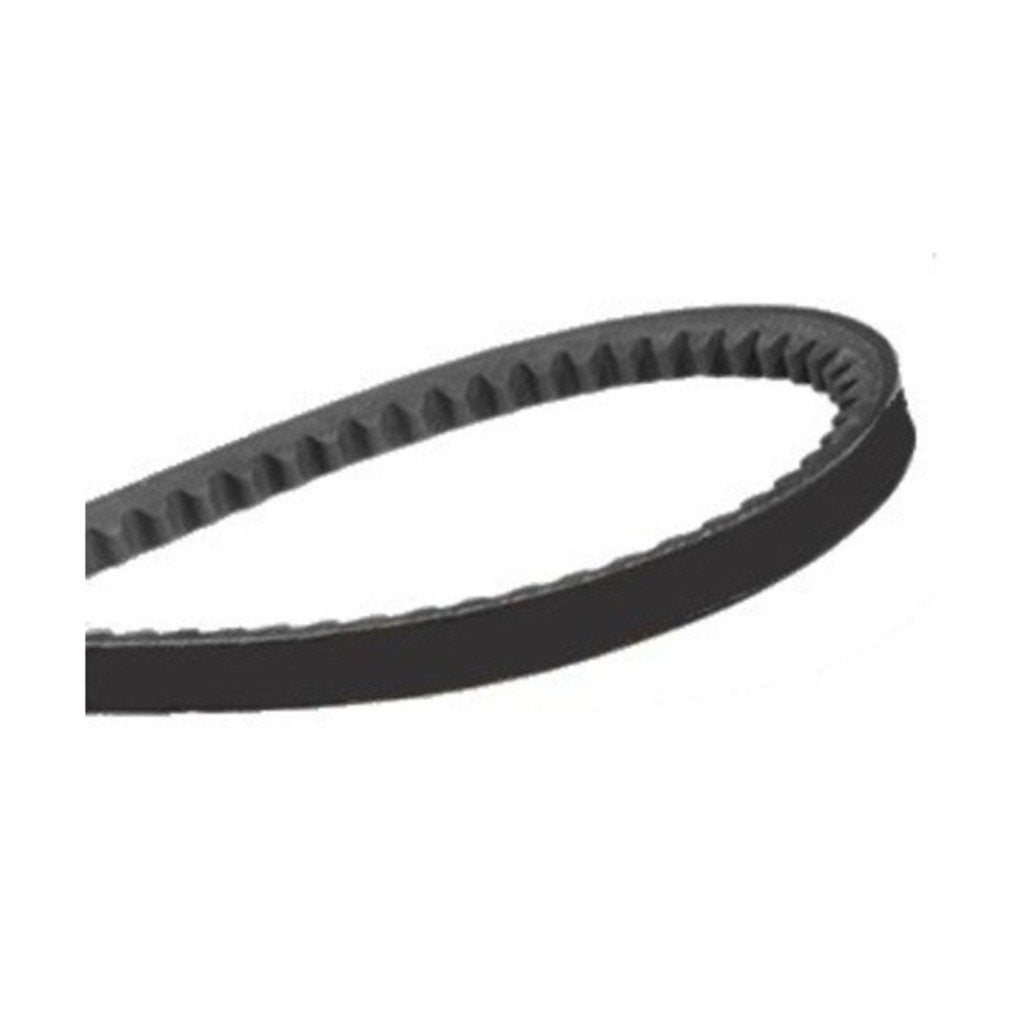

PIX Raw Edge Cogged Belt 5VX Section 15.8 x 14 mm (Narrow Section)
PIX Raw Edge Cogged Belt 5VX Section 15.8 x 14 mm (Narrow Section) 4786293145689
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
- Specification
- Description
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
5VX 240, 5VX 470, 5VX 500, 5VX 510, 5VX 540, 5VX 630, 5VX 730, 5VX 750, 5VX 800, 5VX 900, 5VX 950, 5VX 1000, 5VX 1030, 5VX 1060, 5VX 1120, 5VX 1180, 5VX 1250, 5VX 1320, 5VX 1400, 5VX 1500, 5VX 1600, 5VX 1700, 5VX 1800, 5VX 1900, 5VX 2000 |
|
Section |
5VX Section |
|
Angle |
38 |
|
Top Width |
15.8 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
112 dp |
|
Mfg. Range |
23.5 Inch To 200 Inch |
|
Standard |
RMA IP 22 |
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Description
-
Higher Power Transmission Capacity Than Wrapped Belts
-
Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate
-
Suitable For Drives Using Smaller Diameter Pulleys And High RPM
-
Anti-Static, Oil & Heat Resistant
-
Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)
-
Temperature Range: -25°C To +100°C
-
Application
-
Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc
Product Specification
|
Brand |
PIX |
|
Product Type |
Raw Edge Cogged Belt |
|
Size |
5VX 240, 5VX 470, 5VX 500, 5VX 510, 5VX 540, 5VX 630, 5VX 730, 5VX 750, 5VX 800, 5VX 900, 5VX 950, 5VX 1000, 5VX 1030, 5VX 1060, 5VX 1120, 5VX 1180, 5VX 1250, 5VX 1320, 5VX 1400, 5VX 1500, 5VX 1600, 5VX 1700, 5VX 1800, 5VX 1900, 5VX 2000 |
|
Section |
5VX Section |
|
Angle |
38 |
|
Top Width |
15.8 mm |
|
Thickness |
14 mm |
|
Min Pulley Dia. (mm) |
112 dp |
|
Mfg. Range |
23.5 Inch To 200 Inch |
|
Standard |
RMA IP 22 |
