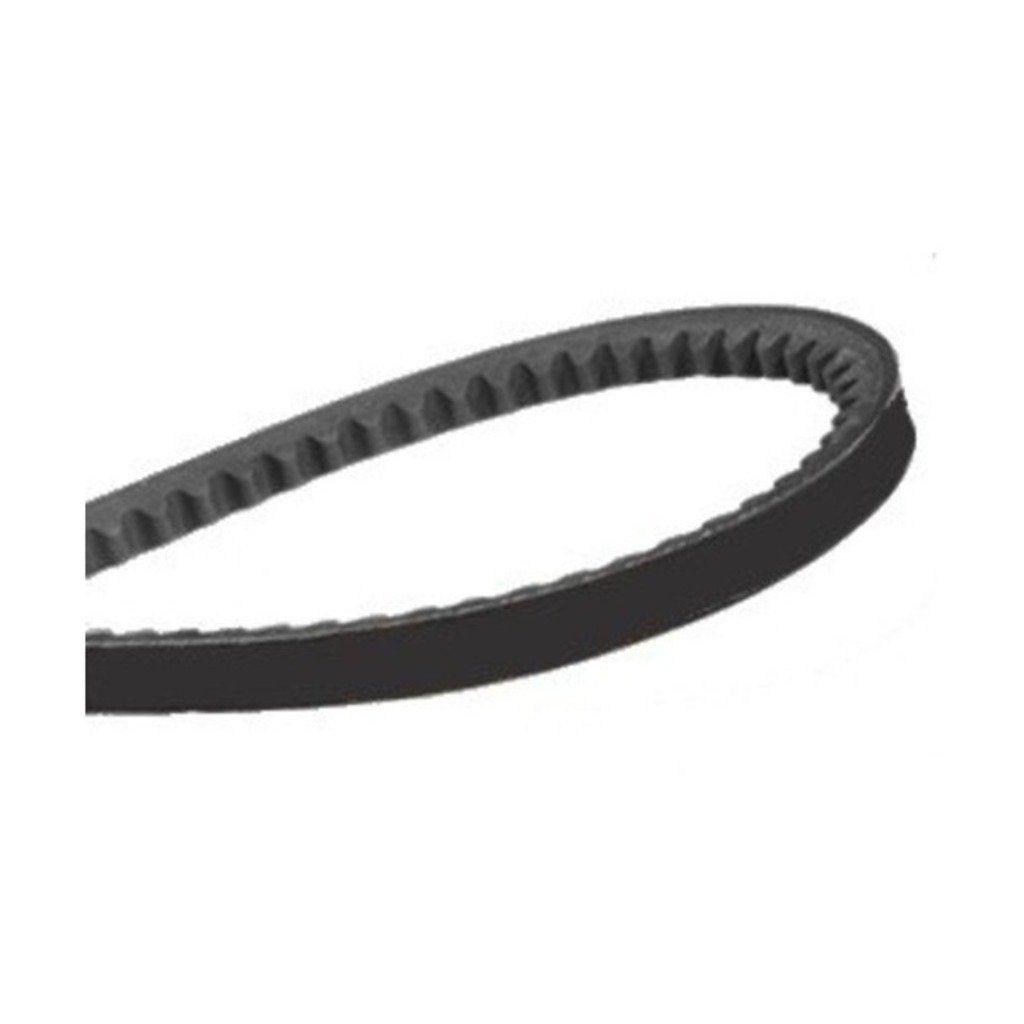

PIX Raw Edge Cogged Belt 3VX Section 9.7 x 8 mm (Narrow Section)

PIX Raw Edge Cogged Belt 3VX Section 9.7 x 8 mm (Narrow Section)

Visit the Redmi Store

₹ 0.00


Quantity



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
  • Specification
  • Description

Brand

PIX

Product Type

Raw Edge Cogged Belt

Size

3VX 240, 3VX 375, 3VX 425, 3VX 475, 3VX 500, 3VX 530, 3VX 560, 3VX 600, 3VX 630, 3VX 670, 3VX 750, 3VX 800, 3VX 1000, 3VX 1400, 3VX 2000

Section

3VX Section

Angle

38

Top Width

9.7 mm

Thickness

8 mm

Min Pulley Dia. (mm)

56 dp

Mfg. Range

23.5 Inch To 200 Inch

Standard

RMA IP 22

PIX Raw Edge Cogged Belt 3VX Section 9.7 x 8 mm (Narrow Section)

  • Higher Power Transmission Capacity Than Wrapped Belts

  • Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate

  • Suitable For Drives Using Smaller Diameter Pulleys And High RPM

  • Anti-Static, Oil & Heat Resistant

  • Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)

  • Temperature Range: -25°C To +100°C

  • Application

  • Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc

Product Description

  • Higher Power Transmission Capacity Than Wrapped Belts

  • Special Cog Design For Enhanced Flexibility And Heat Dissipation Rate

  • Suitable For Drives Using Smaller Diameter Pulleys And High RPM

  • Anti-Static, Oil & Heat Resistant

  • Maximum Belt Linear Speed (Classical Section: Up To 30 M/Sec, Wedge: Up To 42 M/Sec, Narrow: Up To 45 M/Sec)

  • Temperature Range: -25°C To +100°C

  • Application

  • Compressors, Pumps, Fans, Vacuum Pumps, Blowers, Generators, Heat Exchanger, Industrial Drives, Etc

Product Specification

Brand

PIX

Product Type

Raw Edge Cogged Belt

Size

3VX 240, 3VX 375, 3VX 425, 3VX 475, 3VX 500, 3VX 530, 3VX 560, 3VX 600, 3VX 630, 3VX 670, 3VX 750, 3VX 800, 3VX 1000, 3VX 1400, 3VX 2000

Section

3VX Section

Angle

38

Top Width

9.7 mm

Thickness

8 mm

Min Pulley Dia. (mm)

56 dp

Mfg. Range

23.5 Inch To 200 Inch

Standard

RMA IP 22
