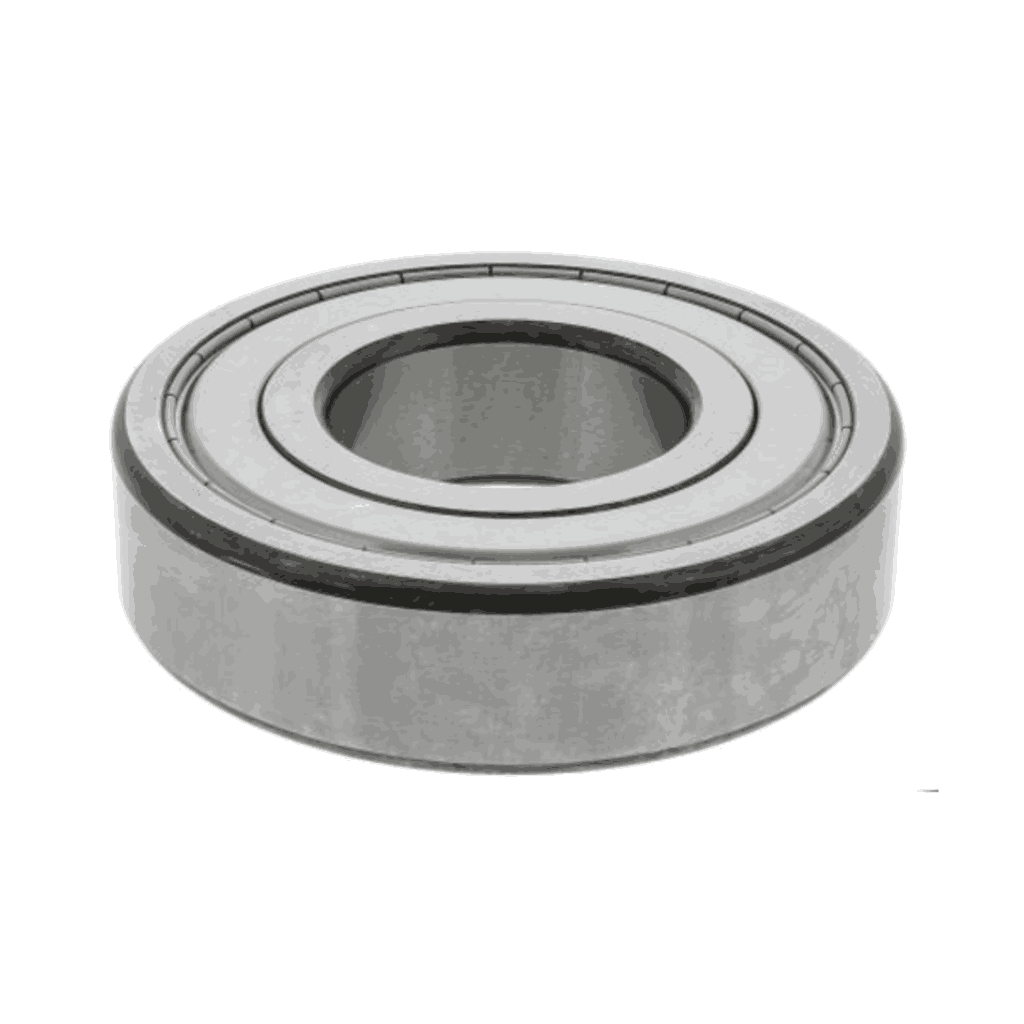

Fag Deep Groove Ball Bearing 6309 Z
Fag Deep Groove Ball Bearing 6309 Z 4786303565913
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
- Specification
- Description
|
Brand |
FAG |
|
Model |
6309 2Z |
|
Type |
Deep Groove Ball Bearing |
|
Inner diameter ( mm ) |
45 |
|
Outer Diameter ( mm ) |
100 |
|
Width ( mm ) |
25 |
|
Limited Speed |
9500 RPM |
|
Dynamic Load |
55.3 KN |
|
Static Load |
31.5 KN |
|
Weight |
100 Grams |
-
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance
-
Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads
-
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free
-
A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates
-
If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds
Product
Product Description
-
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance
-
Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads
-
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free
-
A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates
-
If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds
Product Specification
|
Brand |
FAG |
|
Model |
6309 2Z |
|
Type |
Deep Groove Ball Bearing |
|
Inner diameter ( mm ) |
45 |
|
Outer Diameter ( mm ) |
100 |
|
Width ( mm ) |
25 |
|
Limited Speed |
9500 RPM |
|
Dynamic Load |
55.3 KN |
|
Static Load |
31.5 KN |
|
Weight |
100 Grams |
